Virtual Keyboards
To allow for the easy entry of text and numbers, EdgeTX uses virtual text and number keyboards that can be interacted by either the touchscreen or roller. Additionally, there are shortcut keys that are mapped to the hardware buttons as described below:

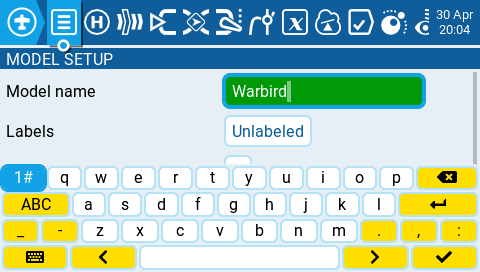

Shortcuts to the text keyboard using the hardware keys.
Radios with a single PGUP/DN keys and the X12S:
[SYS] = cursor left
LONG [SYS] = cursor to start
[MDL] = change keyboard mode (alpha upper, alpha lower, numbers + special, numeric)
LONG [MDL] = backspace
[PGDN] = toggle case
[PGUP] (X12S) = toggle case
LONG PGDN = delete
[TELE] = cursor right
LONG [TELE] = cursor to end
Radios with separate PGUP and PGDN keys:
[SYS] = change keyboard mode (alpha upper, alpha lower, numbers + special, numeric)
LONG [MDL] = backspace
[PGDN] = cursor right
LONG [PGDN] = cursor to end
[PGUP] = cursor left
LONG PGUP = cursor to start
[TELE] = toggle case
LONG [TELE] = delete

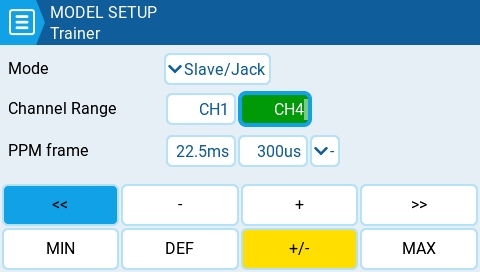

Shortcuts to the number keyboard using the hardware keys.
Radios with a single PGUP/DN keys and the X12S
[SYS] = '-'
LONG [SYS] = 'MIN'
[MDL] = '>>'
LONG [MDL]= '+/-'
[PGDN] & [PGUP] = '<<'
LONG [PGDN] & [PGUP] = 'DEF'
[TELE] = '+'
LONG [TELE] = 'MAX'
Radios with separate PGUP and PGDN keys:
[SYS] = '<<'
LONG [SYS] = 'MIN'
[MDL] = '>>'
LONG [MDL] = 'MAX'
[PGDN] = '+'
[PGUP] = '-'
[TELE]= '+/-'
LONG [TELE] = 'DEF'
