  1. User Manual for Color Screen Radios

Channel Monitor

PreviousManage ModelsNextModel Settings

Last updated 13 days ago

The Channel Monitor shows both the output value (top bar) and mix value (bottom bar) for each of the 32 radio channels, spread across 4 pages of 8.

The 5th page of the channel monitor is the logical switches monitor. On this page, you will see the status (activated/non-activated) of all logical switches. Logical switches that are activated are highlighted.

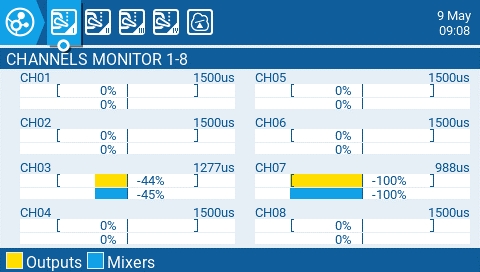

Channels Monitor

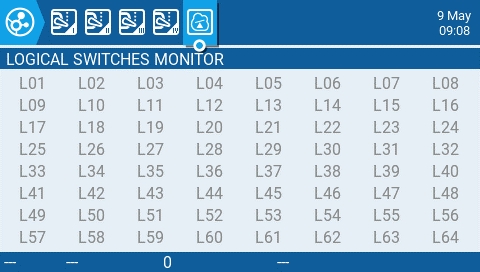

Logical Switches Monitor
