  1. User Manual for Color Screen Radios
  2. Radio Settings

Version

PreviousHardwareNextScreen Settings

Last updated 29 days ago

The Version screen displays information about the current EdgeTX version that is being used:

  • FW - Firmware name

  • VERS - Firmware version

  • DATE - Date firmware was compiled

  • TIME - Time firmware was compiled

  • OPTS - Build options that were enabled when compiled.

The Modules / RX Version gives you information about the activated RX modules for the currently selected model.

A complete list of build options can be found here:

https://github.com/EdgeTX/edgetx/wiki/Compilation-options

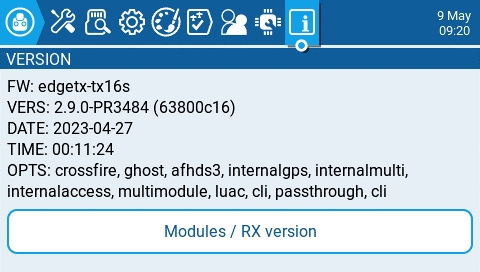

Version screen

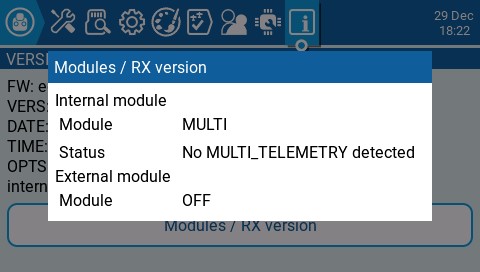

Modules / RX Version screen
