  1. User Manual for Color Screen Radios
  2. User Interface

Trim Navigation

Navigating the menus with Trim hat switches on NV14 & EL18

PreviousVirtual KeyboardsNextManage Models

Last updated 29 days ago

On the NV14 and EL18 radios, it is possible to navigate the menu options using the Trim hat switches.

In the radio setup screen, you can configure the Hats Mode with one of the following options:

  • Trims only: The Trim hat switches will be used to adjust the trim values only.

  • Keys only: The Trim hat switches will be used to navigate the menu options (as described below)

  • Switchable: Trim hat switch functionality can be changed between Trims and Keys on-the-fly.

To switch between modes on-the-fly

  1. Configure Hats Mode as Switchable.

  2. Press and hold the Left Hat.

  3. Immediately after, press the Right Hat.

When the radio is powered up and Hats Mode is set to Switchable, the initial mode will always be set to Trims.

Hats mode option
Configuration options
Hats mode help text

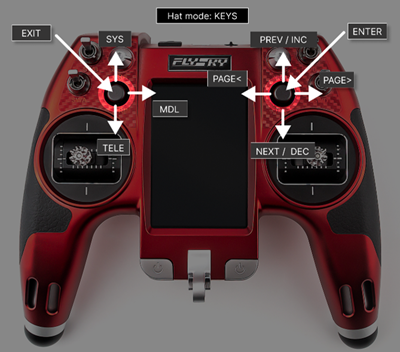

Keys mode

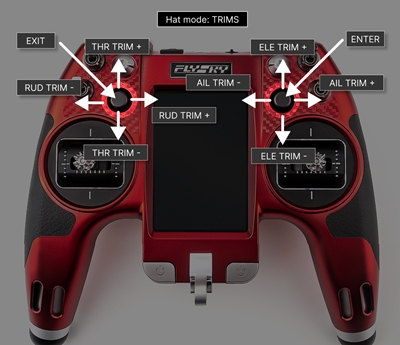

Trims mode
