  1. EdgeTX: How-To

Disable Touchscreen

PreviousJoystick Mapping Information for Game DevelopersNextUse Trims to Adjust Global Variables

Last updated 8 months ago

There are various reasons on why you may want to disable the touchscreen. Unintentional touches during a flight could change your model configuration which can be a risk.

Therefore we can create a global function or special function using the No Touch feature to disable and enable the touch feature. While global functions apply to all models, the special function is defined on individual models.

Disable touch screen with a global function

In the following example we use switch SF to disable the touch screen with a global function.

Disable touch screen with a special function

Customizable switches or logical switches cannot be used in global functions. But we can use a special function to enable and disable the touch screen with a customizable switch.

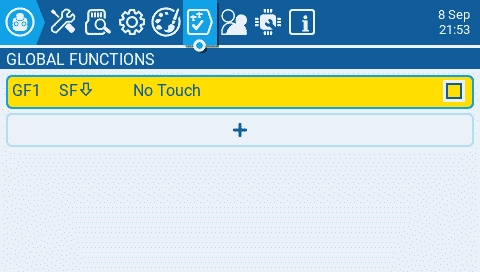

create a global function to disable touch with switch SF

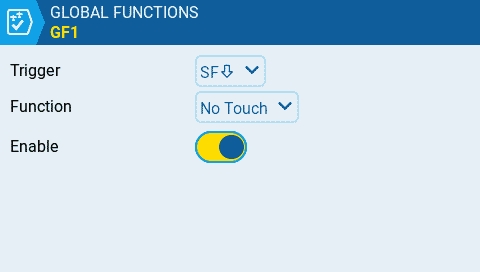

show the global function

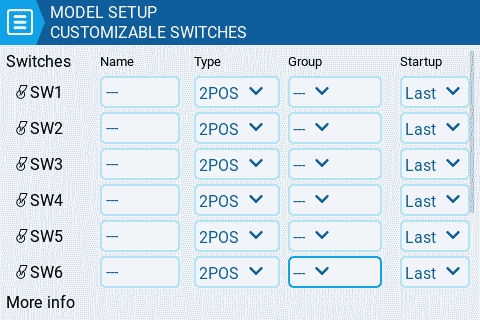

setup of customizable switches
create a special function to disable touch with SW1

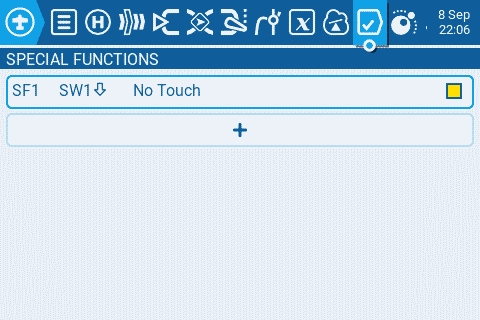

list of special functions
