User Manual for Color Screen Radios

PreviousHaving trouble updating?NextUser Interface

Last updated 11 months ago

EdgeTX supports the following color screen radios:

  • FlySky NV14 / EL18

  • FlySky PL18 / PL18 EV

  • FrSky X10 / X10S / X10 Express / X10S Express

  • FrSky X12S / X12S-IRSM

  • Jumper T15

  • Jumper T16 / T16 Plus / T16 Pro Hall

  • Jumper T18 / T18 Lite / T18 Pro

  • RadioMaster/Eachine TX16S / RadioMaster TX16S MAX / RadioMaster TX16S Mark II

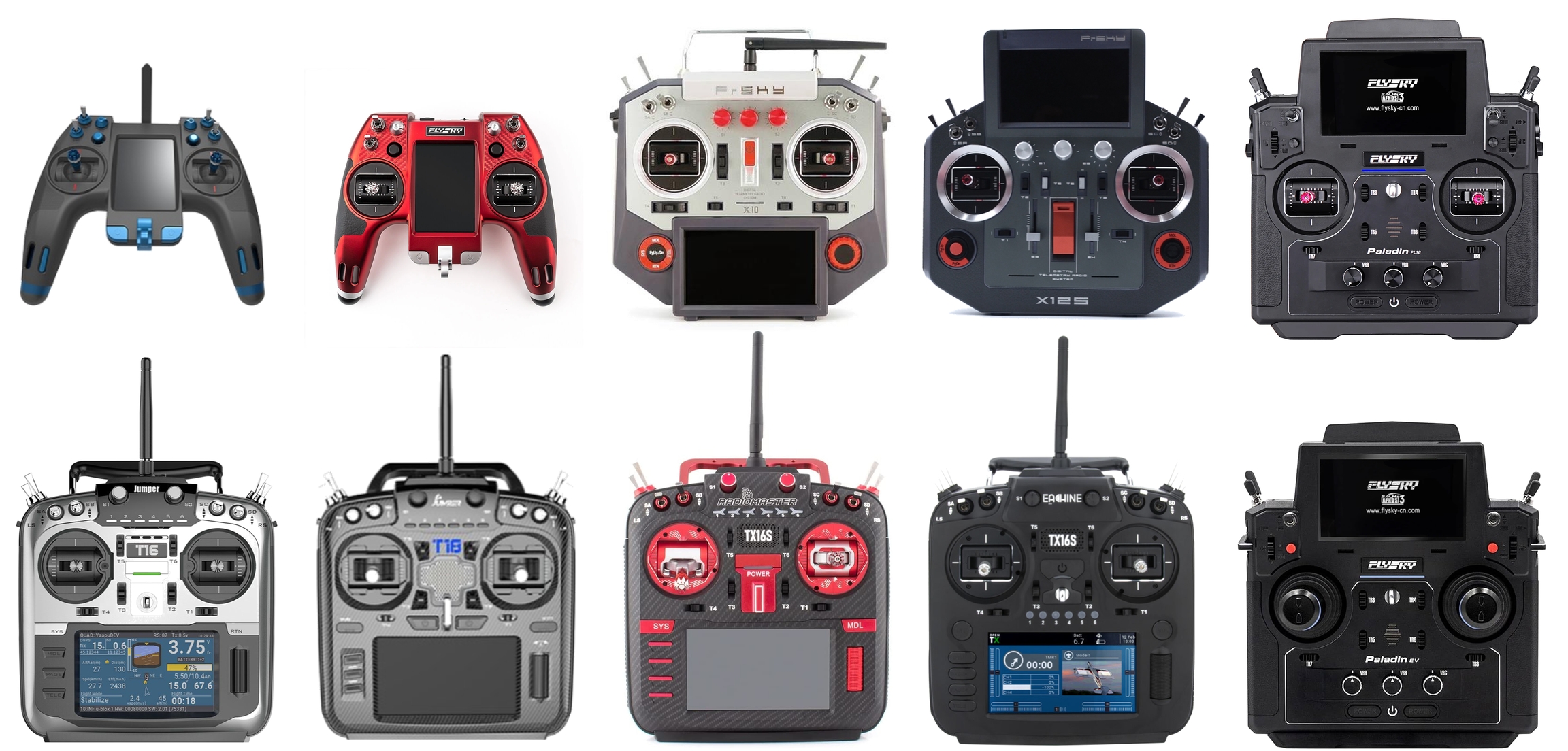

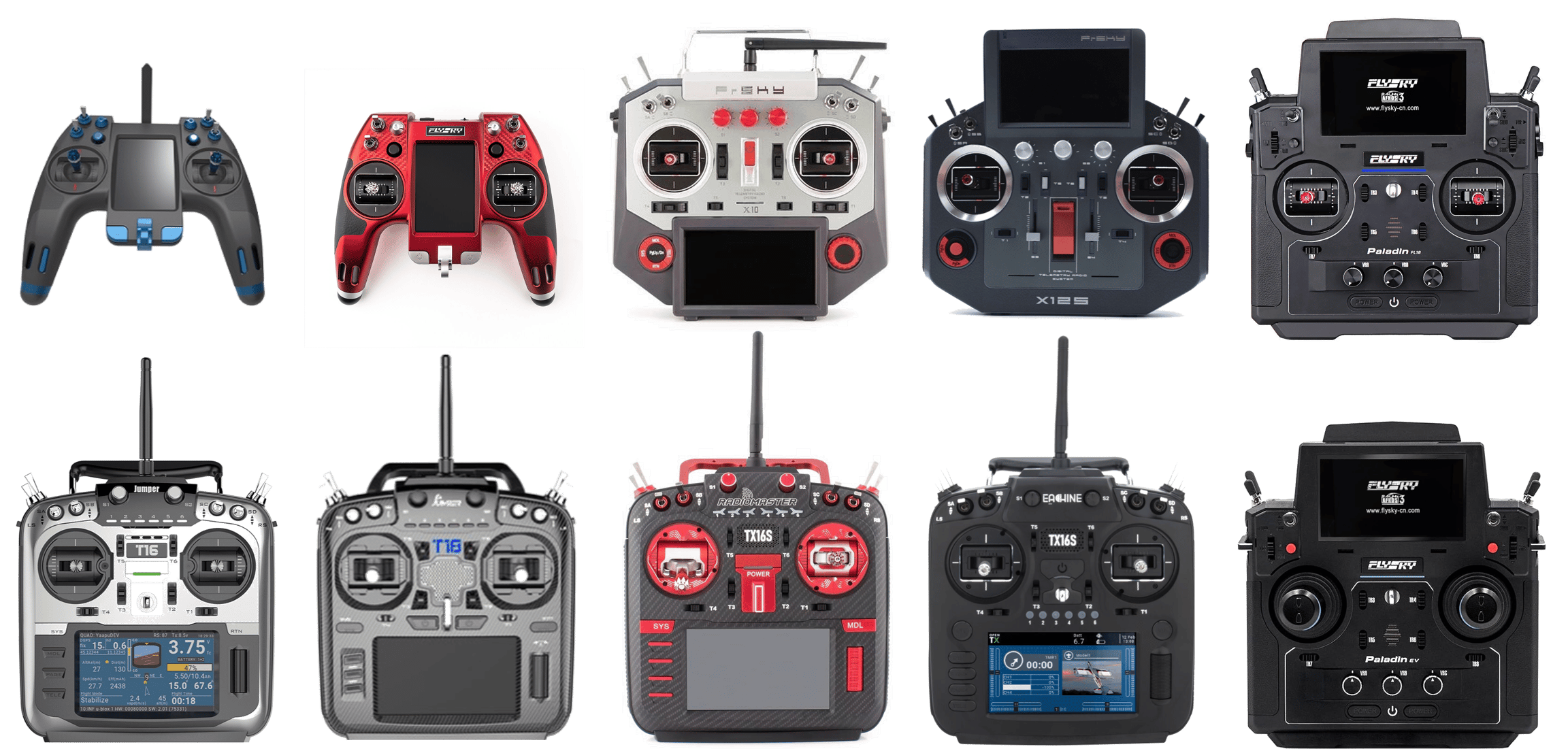

EdgeTX supported color screen radios
