# Trainer

The **Trainer** screen in Radio Settings is used to configure how the radio in Master mode will handle the signals from the radio in Slave mode.

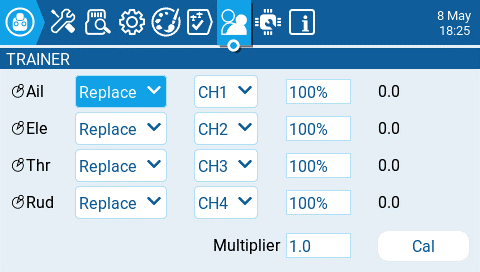

<figure><img src="/files/7FM9rVdGGjJcBsntkS2L" alt=""><figcaption><p>Trainer Screen</p></figcaption></figure>

For each of the four main control inputs (Ail, Ele, Thr, Rud), the following options can be configured (for each row, from left to right).

* **Mode -** How the radio in Master mode will handle the signals from the radio in Slave mode.&#x20;
  * **OFF** - Stick values from the radio in Master mode will be used - no input from the radio in Slave mode.
  * **Add -** Adds the stick values from both the radios in Master and Slave modes.
  * **Replace -** Replaces the stick values from the radio in Master mode with the stick values from the radio in Slave mode. (Default)
* **Source channel** - The channel from the radio in Slave mode that is mapped the control input.
* **Weight** - Percentage of stick travel to use of the radio in Slave mode. Use negative values to change the stick direction.
* **Cal (calibrate)**- Sets the center stick value of the radio in Slave mode.
* **Multiplier** - This value changes the weight of all the sticks together.&#x20;

{% hint style="info" %}
The trim from the radio in Master mode is usually used. Set the trims on the radio in Slave mode to their center.
{% endhint %}

{% hint style="info" %}
The radio in Master mode is the one that gets bound to the model receiver.
{% endhint %}

{% hint style="info" %}
A virtual trainer switch (**Tnr**) can be selected as switch to activate a special function or curve. The switch is ON when the trainer link is active.
{% endhint %}


---
