  1. User Manual for Color Screen Radios
  2. Radio Settings

Themes

PreviousAdditional Radio settingsNextGlobal Functions

Last updated 8 days ago

The Theme screen allows you to apply different colored themes to your radio. By default, the EdgeTX SD card comes with the themes shown above. Long pressing on a selected theme will give you the following options:

  • Set Active - Sets the selected theme as the active theme.

  • Edit - Opens the theme editor to edit the selected theme.

  • Duplicate - Makes a copy of the selected theme.

  • Delete - Deletes the selected theme.

Selecting the Details button will open the Edit Theme Details screen. Here you can edit the name, author and description of the them.

To edit a theme in the Theme Editor, select the color variable from the list on the left side of the screen. Once you do, the Edit Color screen will be shown.

Select the color using either the color scales on the left side of the screen. You can choose between the RGB and HSV color scales with the buttons at the upper right side of the screen.

Once you have your desired color, press the theme logo in the upper left corner to go back to the Edit Theme screen to select another color variable to edit. Once you are finished, press the theme logo to exit the Theme Editor and save your changes.

You can find more user-created themes and additional theme creation resources here: https://github.com/EdgeTX/themes

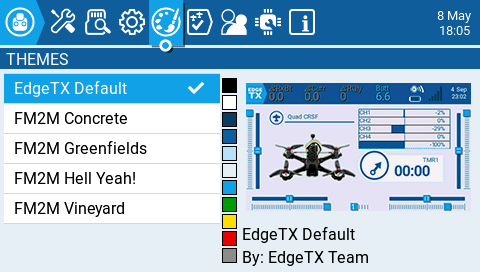

Themes Screen

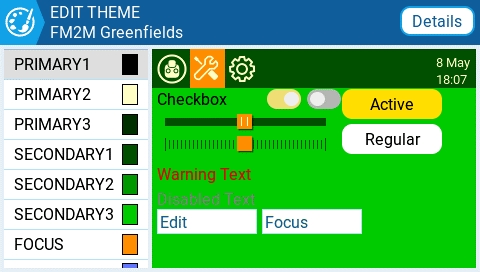

Edit Theme Screen

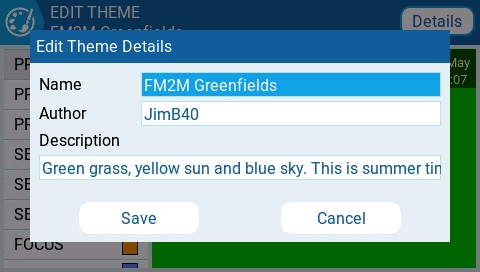

Edit Theme Details Screen

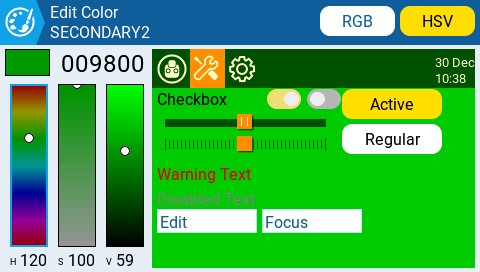

Edit Color Screen
