  1. User Manual for Color Screen Radios

Reset Telemetry

PreviousWidgetsNextStatistics

Last updated 8 days ago

Reset session - When selected, this option:

  • Resets all timers configured with a persistence setting of Flight to zero.

  • Resets all discovered telemetry sensor values.

  • Resets all logical switch states

  • Triggers the same checks as loading the model - i.e. throttle position, switch state, is failsafe set check, display pre-flight checklist if configured, stuck keys test, etc.

Reset timer 1 / 2 / 3 - Resets only the selected timer to zero regardles of the configured persistence setting.

Reset telemetry - This option resets all discovered telemetry sensor values.

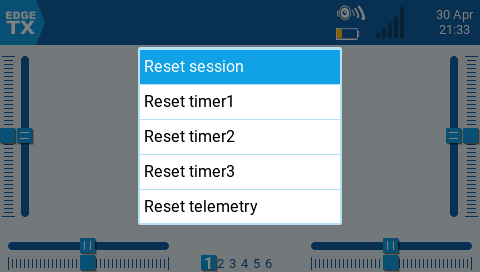

Reset telemetry screen
