Enabled Features

PreviousThrottleNextUSB Joystick

Last updated 1 year ago

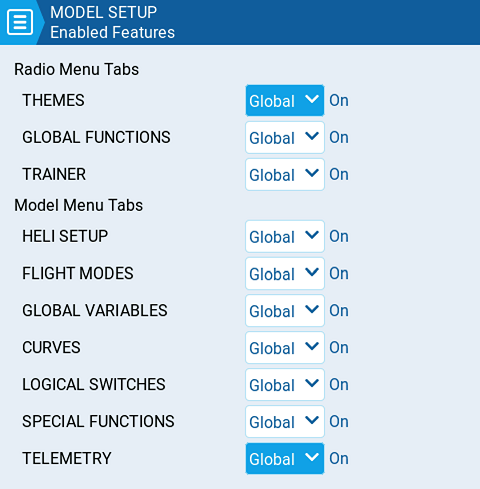

The Enabled Features section of Model Setup allows you to configure which tabs are visible in the selected model's radio setup and model settings area of EdgeTX. You can select the following options:

  • Global - When selected, the tab will take the global value configured in the Enabled Features area in Radio Setup. The configured global value will display next to the option.

  • On - When selected, this tab will be visible when this model is loaded.

  • Off - When selected, this tab will not be visible when this model is loaded.

Note: Turning off a tab only hides the tab and does not change the items already configured in that tab. For example, if you configure a special function and then turn off the special functions tab, the special function will still work as configured.

EXCEPTION: Turning off the Global Functions tab will disable configured global functions for that model.
