  1. EdgeTX User Manual
  2. User Manual for Color Screen Radios

User Interface

PreviousUser Manual for Color Screen RadiosNextSelect Model

Last updated 2 years ago

The user interface of EdgeTX can be navigated by physical buttons, the touch interface, or a combination of both.

Buttons:

  • [RTN] - Return / Back - Short press [RTN] button to return to the previous page, previous menu or cancel action

  • [PAGE>] / [PAGE<] - Page next & page previous - Used to navigate between different screens, tabs, or options settings, depending on the screen.

  • [Roller] or [Dial] - Next & previous value The roller is used to navigate through menu options.

  • [Enter] - Accept - Used to select option, function or accept value - Push [Roller] or [Dial] button to select or enter.

Touch Interface:

Certain radios are equipped with a touch screen. On these radios, you can interface with the menu options either with touch or physical buttons.

It is possible to disable the touch interface by configuring a special function. See Special Functions for more information.

Touch the EdgeTX icon in the upper left corner of the screen to open the main navigation menu. Touch the desired menu option to select it.

Pressing the roller from the main screen will also open the main navigation menu. You can then scroll using the roller to the desired menu option and select it by pressing the roller.

[SYS] - System Button - Short press [SYS] button to go to the page.

[MDL] - Model Button - Short press [MDL] button to go to the page - Long press [MDL] button to go to the page

[TELE] - Telemetry - Press the [TELE] button to go to the page

For models that have Display Checklist enabled in the screen and a valid model checklist file in the Models folder you will see a Model Notes icon instead of the Channel Monitor icon.

Radio Settings
Model Settings
Select Model
Screen Settings
Preflight Checks

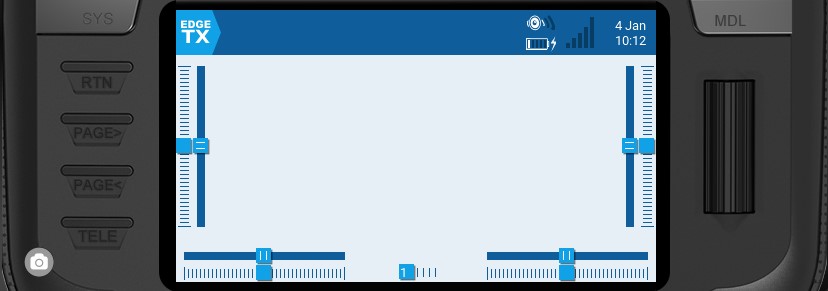

Common buttons for navigation

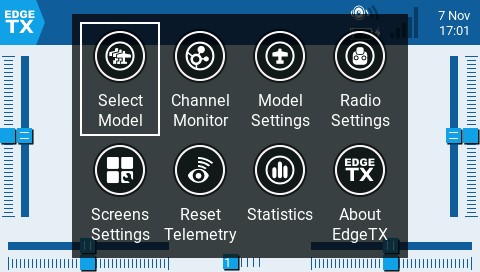

Main navigation menu
