# User Inteface

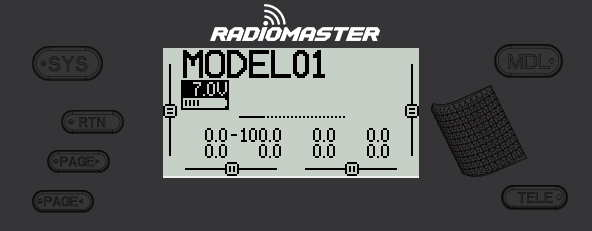

<figure><img src="https://content.gitbook.com/content/xpQCeJpxTpRcYKICUqrR/blobs/cruHX7Yynvu8AUM2pzjr/bwUserinterface.png" alt=""><figcaption><p>Common buttons user for radio menu navigation</p></figcaption></figure>

The buttons below are commonly used to navigate EdgeTX. If your radio does not have these buttons, please consult the [manufacturer's documentation](https://drive.google.com/drive/folders/1HPqNbVZT9yzQsHoVKRPTM1YFeBXevYS9?usp=sharing) to see your radio's specific button configuration.

### **Buttons:**

* **\[SYS]** - System Button\
  \- Short press **\[SYS]** button from the main screen to go to the [Tools](/v2.10/bw-radios/radio-settings.md) page of the Radio Settings menu.
* **\[MDL]** - Model Button\
  \- Short press **\[MDL]** button from the main screen to go to the [Model Select ](/v2.10/bw-radios/model-select.md)page of the Models menu
* **\[RTN] -** Return / Back\
  \- Short press **\[RTN]** button to return to the previous page, previous menu or cancel action
* **\[PAGE>] / \[PAGE<]** - Page next & page previous\
  \- Used to navigate between different screens, tabs, or options settings, depending on the screen.
* **\[TELE] -** Telemetry\
  \- Press the **\[TELE]** button to go to the configured telemetry screens. More information about the telemetry screens is found in the [Display ](/v2.10/bw-radios/model-select/display.md)section.
* **\[Roller]** or **\[Dial]** - Next & previous value\
  The roller is used to navigate through menu options.
* **\[Enter]** - Accept\
  \- Used to select option, function or accept value\
  \- Push **\[Roller]** or **\[Dial]** button to select or enter

***Note***: When editing text, you can often hold down **\[Roller]** or **\[Dial]** to change the between uppper and lower case.


---
